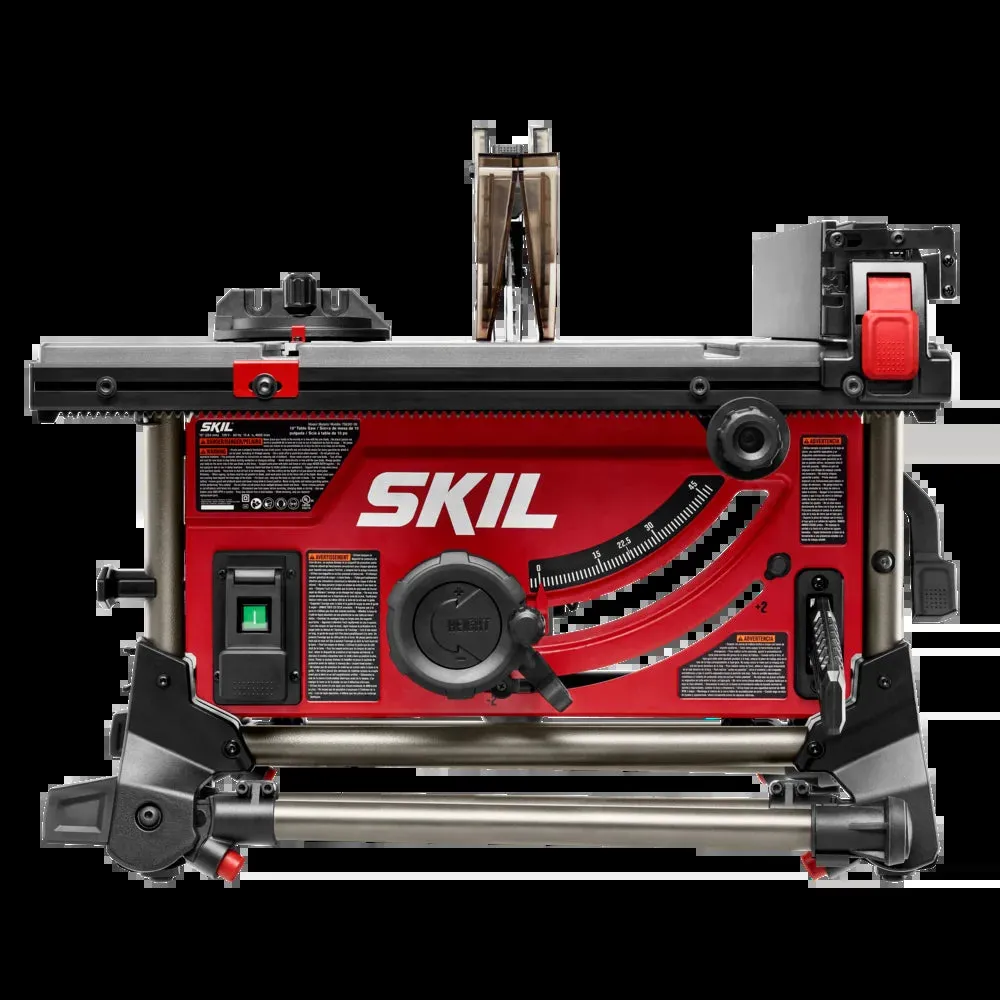

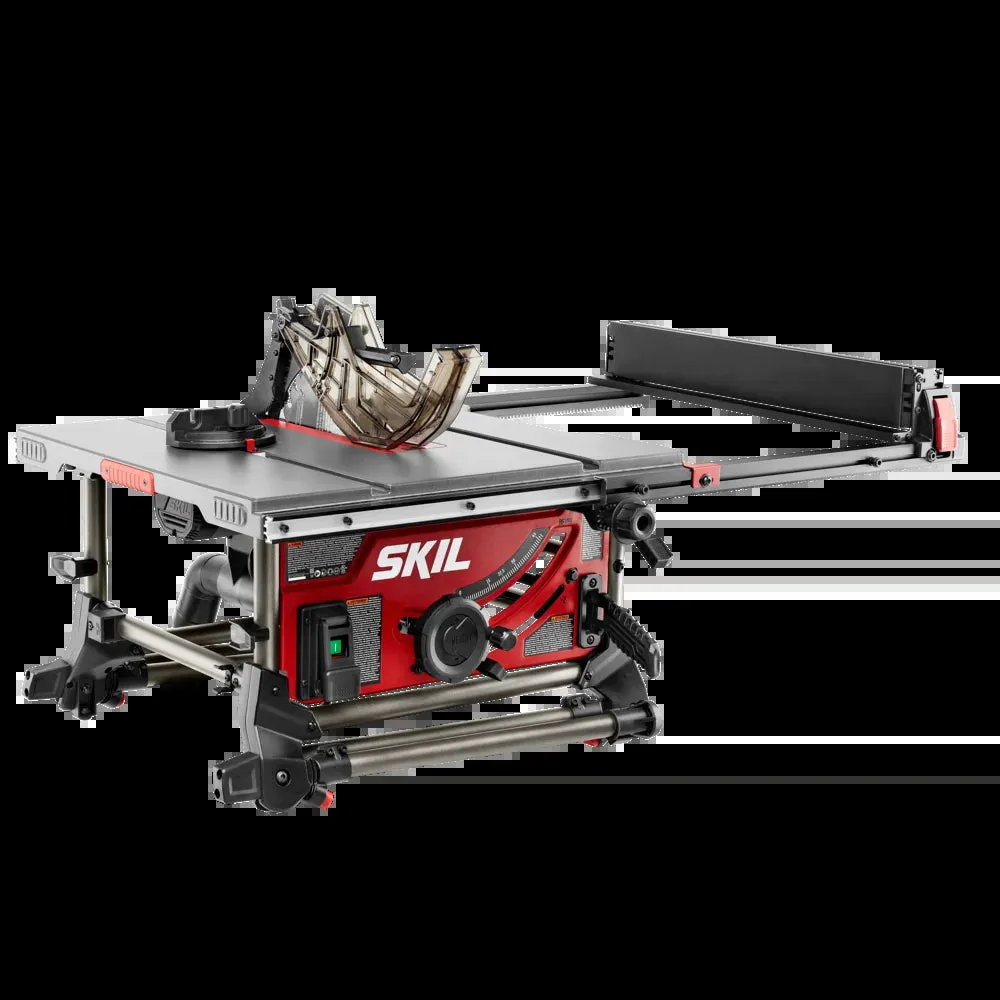

The SKIL TS6307-00 10" Jobsite Table Saw has a 25-1/2 (64.77cm) Rip Capacity and is equipped with a 15-Amp motor, integrated foldable legs, rack & pinion fence rails, and a dust port elbow to keep your jobsite clean. The 15-Amp motor quickly rips through hardwoods with ease, while the rack & pinion fence rails make fence adjustments fast, smooth, and accurate. With its 0-45? bevel capacity, the quick release lever allows for cuts between two positive stops at 0 and 45 degrees, and its 4x4 cutting capacity allows for swift 90-degree cutting. The integrated foldable legs seamlessly form into a folding stand to provide portability and convenience, while the dust port elbow systematically redirects dust to a container for easy cleanup. This large coated cast aluminum tabletop saw comes equipped with a 10, 24-tooth carbide blade. The parallel blade alignment allows for ease of blade adjustment along the rip fence and miter slot, for precise accurate cuts. This table saw features a safety anti-restart switch in case of outages.

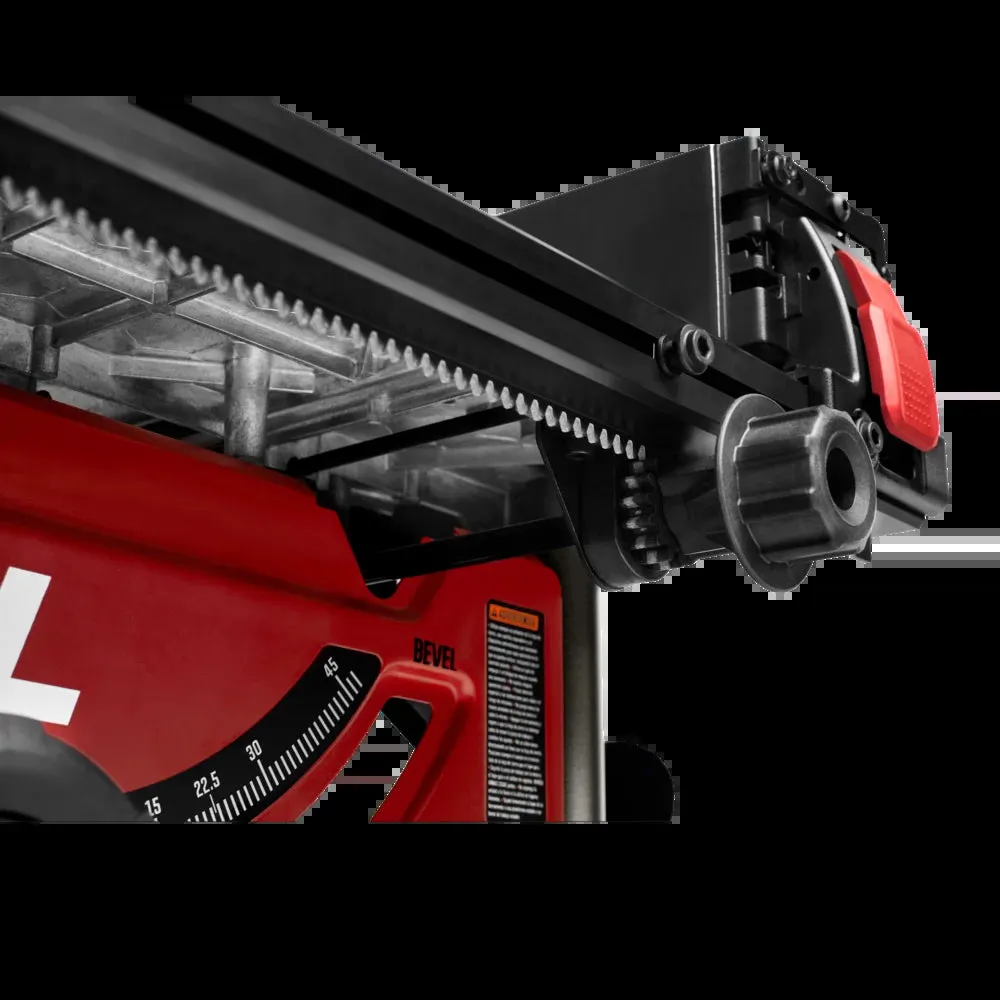

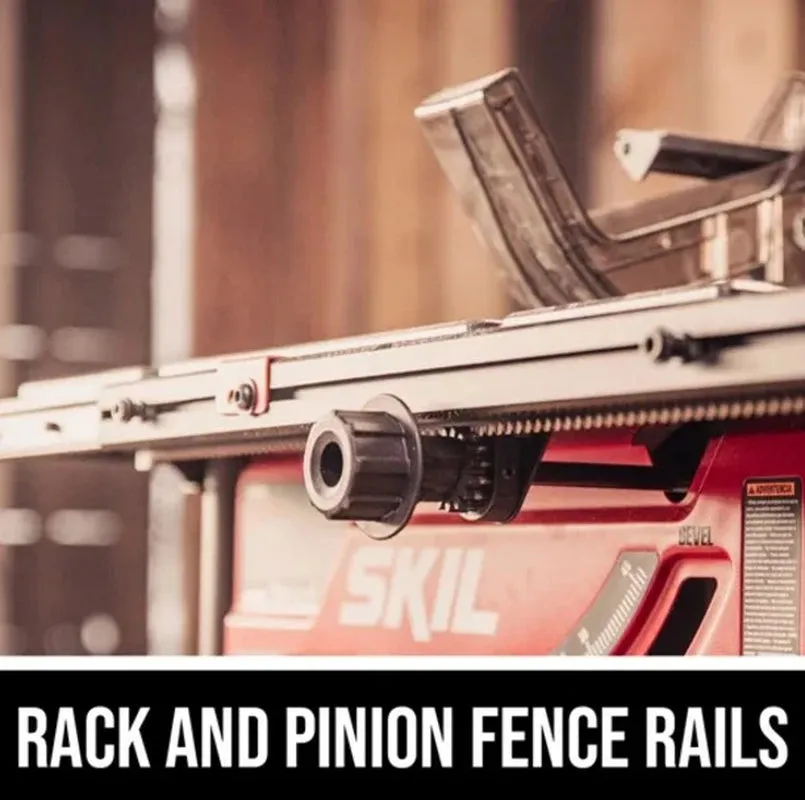

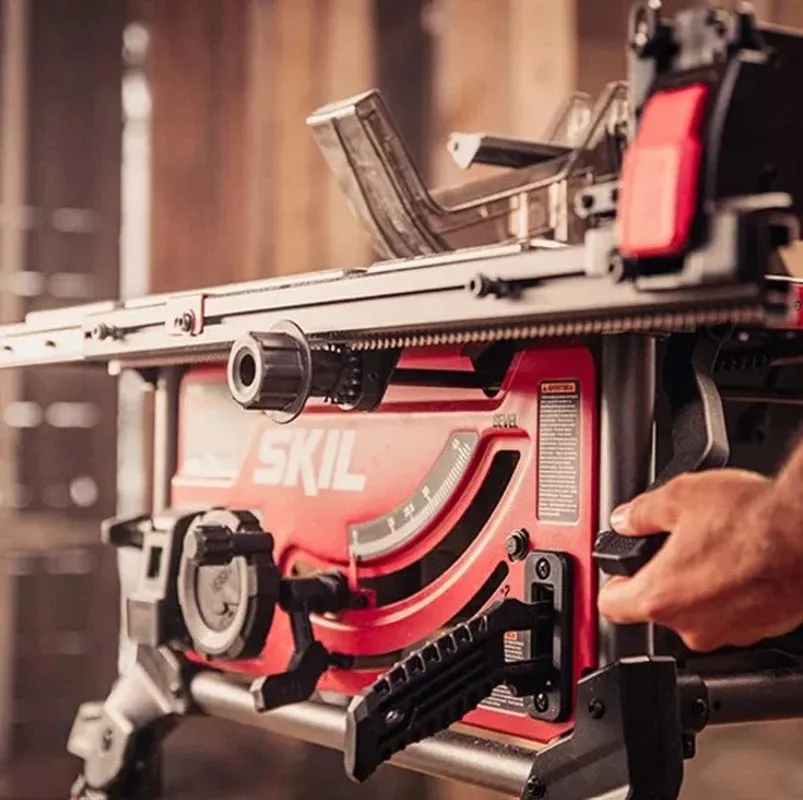

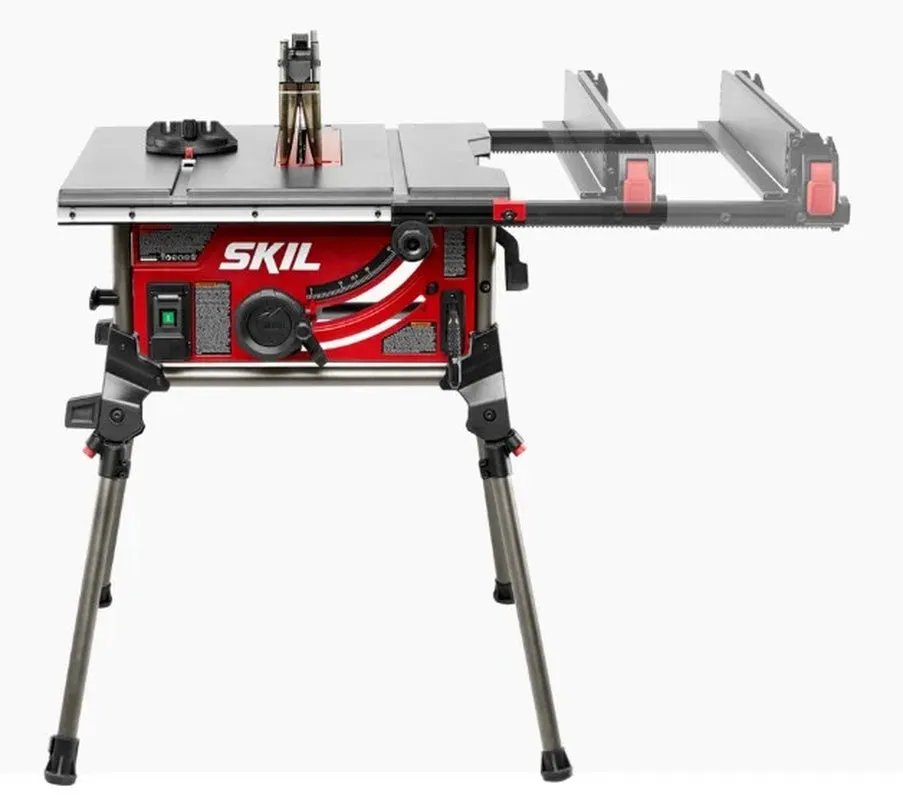

- RACK AND PINION FENCE RAILS Ensures fence stays parallel to blade for fast, smooth, and accurate cuts

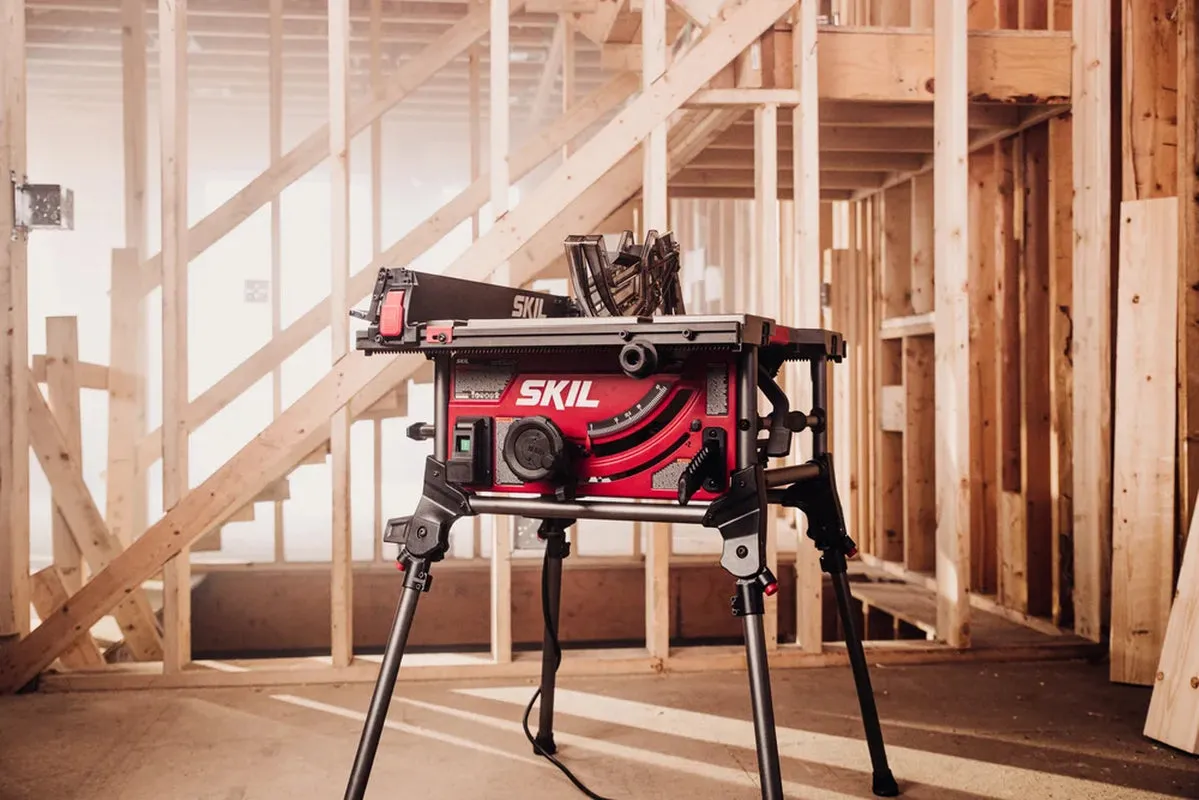

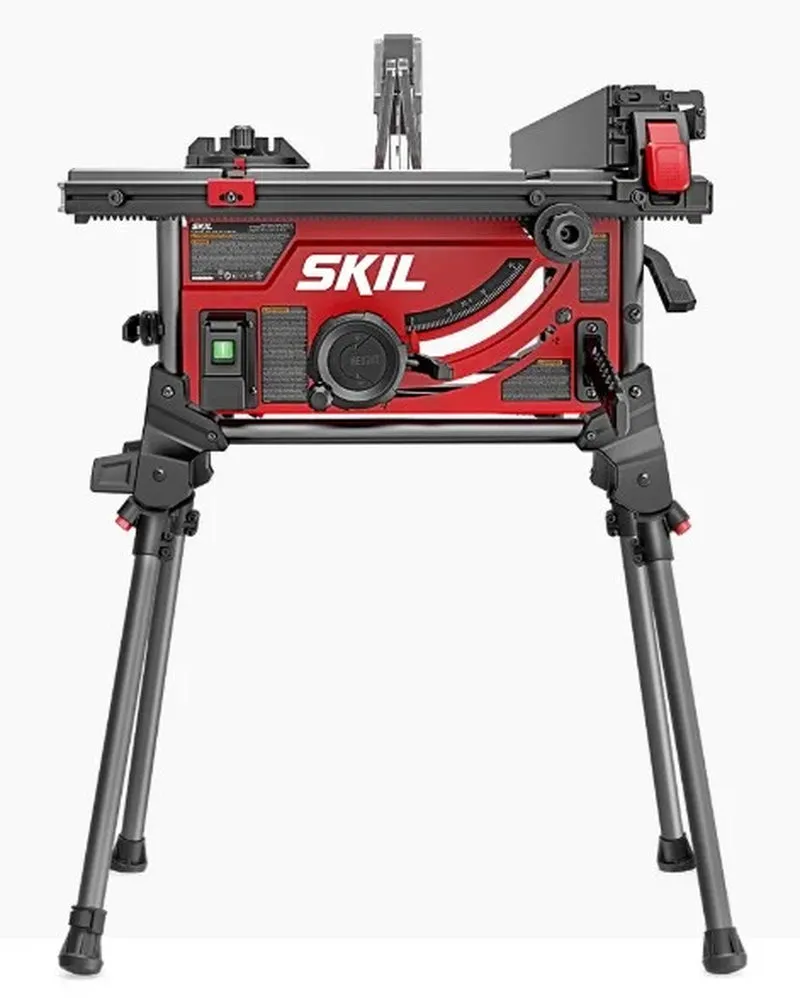

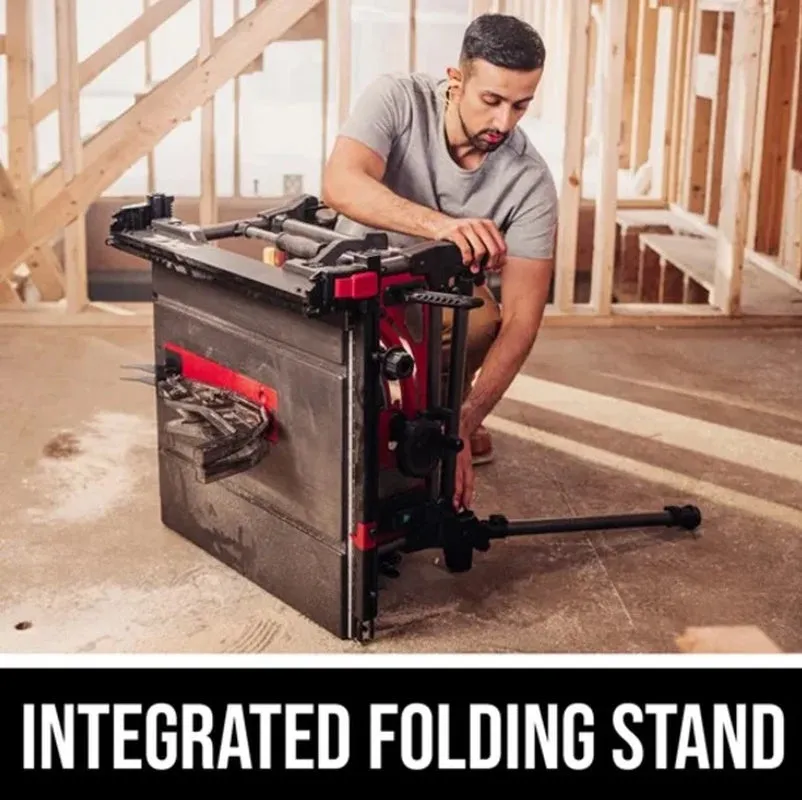

- INTEGRATED FOLDING STAND Legs quickly fold in to provide portability and convenient storage

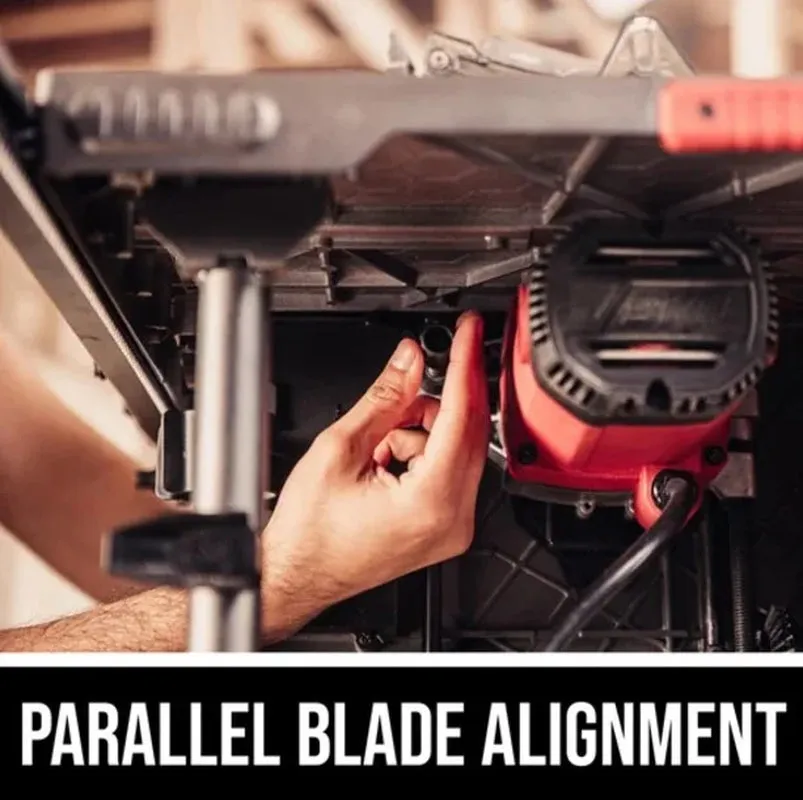

- PARALLEL BLADE ALIGNMENT Available micro-adjustment of blade so that it is parallel to rip fence and miter slot

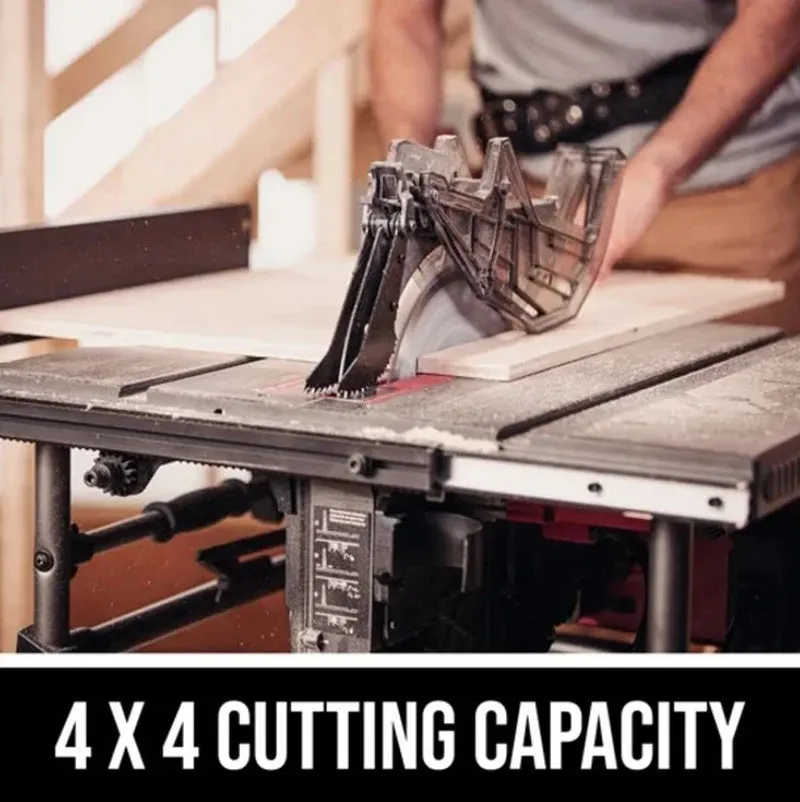

- 4x4 CUTTING CAPACITY Cuts material up to 4x4 at 90 degrees
- -2-47 BEVEL CAPACITY Cuts between two positive stops at 0 and 45 degrees with quick release lever
- DUST PORT ELBOW Redirects dust to a container for easy cleanup
- Blade Arbor Hole Diameter: 5/8 IN.
- Blade Diameter: 10 IN.
- Max. Cutting Depth - 0 Bevel: 3.5 IN.
- Max. Cutting Depth - 45 Bevel: 2.5 IN.
- Max. RIP of Left of Blade: 14 IN.
- Max. RIP of Right of Blade: 25.5 IN.
- Max. Width of Dado: 5/8 IN.
- Max. bevel angle (): -2~47
- No Load Speed: 4600 RPM
- Teeth of Blade: 24T
- Tool Current Rating: 15 Amps
- Table Width: 24 IN.
- Table Length: 25 IN.
- Table height (folded): 14-1/4 IN.
- Table Height (unfolded): 32 IN.
